While we present several brackets for overhead or glare shield mounting, 30% of the compasses shipped during the last 30 years have been panel mounted. The most common brackets utilizing vibration damping are shown below.
|
PACMG-2For aircraft that utilize a glare shield or deck mount.
|
|

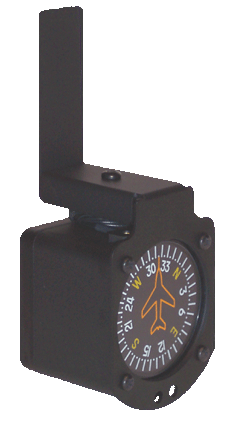

PACMO-UNThe vertical hanger can be bent forward or aft to the desired angle. Holes can be drilled where needed. Once installed the compass face should be parallel to the instrument panel.
|
|

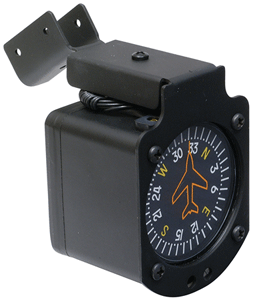

PACMO-PIPER-NPiper models that utilize a 5/8" hat-section center windscreen post.
|
|

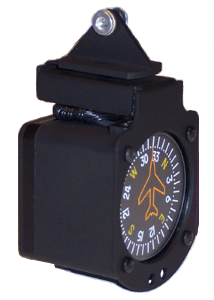

PACMO-CESNO2Cessna models that utilize a one-piece windshield with a compass mounting block.
|
|

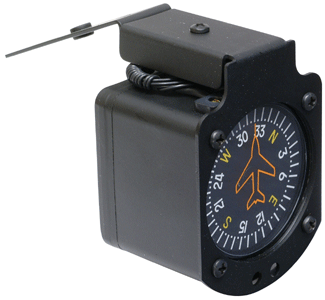

PACMO-APZ21NPiper Apache, Aztec and all Cessna 400 Series with windscreen mount.
|
|

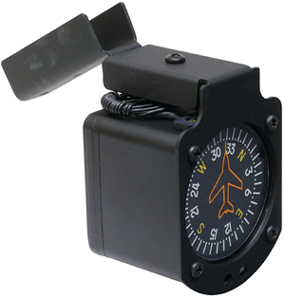

PACMO-VMNMooney models that utilize a box section windscreen divider with front mount screws.
|
|

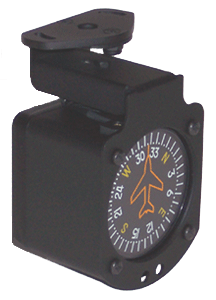

PACMO-CIRRUSCirrus SR20 and SR22.
|
|

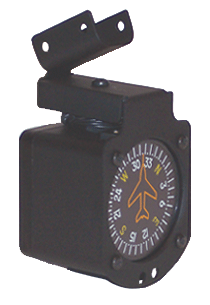

PACMO-R22/R44Robinson R22 or R44 helicopters.
|
|
